272A.1000

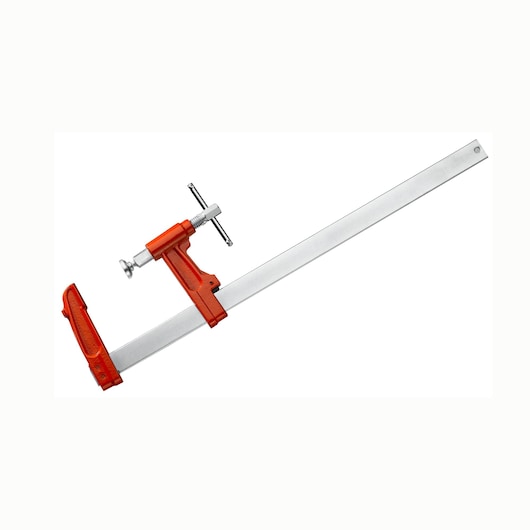

1000 mm Bar Clamp
272A.1000
1000 mm Bar Clamp
- Clamp capacity 1,000mm
- Tighten the control bar without rotating the clamp for accurate assembly
- Notched rail securely holds the clamp jaw in place
Additional Features
- Galvanised rail with lacquered jaws
- Throat depth 100mm
Specifications
|
Jaw Pad Type
|
Swifel
|
|
Product Width [Metric]
|
100 mm
|
|
CE Mark
|
Yes
|
|
Material Thread Screw
|
N/A
|
|
Body Material
|
Cast Zinc
|
|
Product Height [Metric]
|
180 mm
|
|
Product Weight [Metric]
|
3.84 Kg
|
|
Bar Thickness [Metric]
|
35 mm
|
|
Bar Length [Metric]
|
1100 mm
|
|
Distance Between Centers of Fixing Holes [Metric]
|
100 mm
|
|
Jaw Max Opening [Metric]
|
1000 mm
|
|
Clamps and Vices Product Type
|
Trigger Clamp / One Handed Bar Clamp
|
|
Safety Stop
|
No
|
|
Clamping Capacity [Metric]
|
1000 mm
|
|
Handle Material
|
Cast Zinc
|
|
Number of Pieces
|
1
|
|
Is it a Set
|
No
|
|
Quick Release Mechanism
|
No
|
|
Product Length [Metric]
|
1100 mm
|
Support
Warranty
- Lifetime Replacement Guarantee*
If this product becomes defective due to faulty materials or workmanship within its lifetime, we guarantee to replace it free of charge.
*Terms & conditions apply.
