U.302

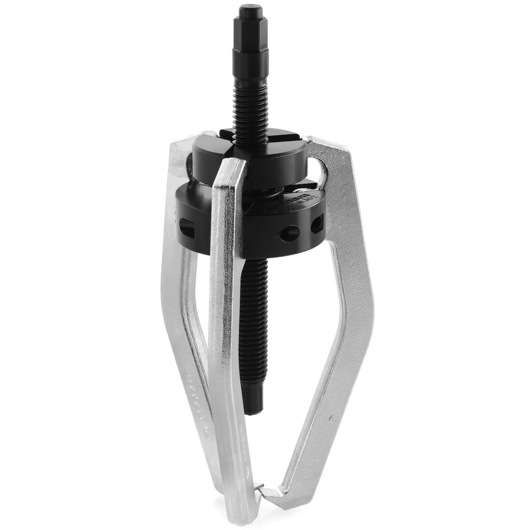

Self-Gripping Outside Pullers With Slim Legs, Maximum Depth 80 mm, 3 Slim Leg
U.302
Self-Gripping Outside Pullers With Slim Legs, Maximum Depth 80 mm, 3 Slim Leg
- Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
- Adaptable puller accessories: slide hammer U.49AM. - Per tip U.301E1 (U.302 and U.302-150). - Per tip U.301E2 (U.302-200).
- Capacity diameter 17-80 mm
Additional Features
- Capacity 1,5 t
Specifications
|
Max. Clip Capacity [Metric]
|
17-80 mm
|
|
Puller Profile
|
Slim
|
|
Product Width [Metric]
|
130 mm
|
|
Self Gripping
|
Yes
|
|
Outside/ Inside Puller
|
Outside
|
|
Stud Driver Diameter Type
|
Single Diameter
|
|
CE Mark
|
Yes
|
|
Number Of Legs
|
3
|
|
Hex Size [Metric]
|
10 mm
|
|
Product Height [Metric]
|
153 mm
|
|
Product Weight [Metric]
|
0.6 Kg
|
|
Width Capacity [Metric]
|
77 mm
|
|
Metric Ton (T)
|
1.5T
|
|
Number Of Spare Pins / Tips
|
1
|
|
Reversible
|
No
|
|
Type Of Puller
|
Special Grip Bearing Pullers
|
|
Number of Pieces
|
1
|
|
Special Grip
|
Yes
|
|
Is it a Set
|
No
|
|
Product Length [Metric]
|
130 mm
|
|
Open Depth [Metric]
|
90 mm
|
|
Tapping
|
M2
|
Support
Warranty
- Lifetime Replacement Guarantee*
If this product becomes defective due to faulty materials or workmanship within its lifetime, we guarantee to replace it free of charge.
*Terms & conditions apply.
