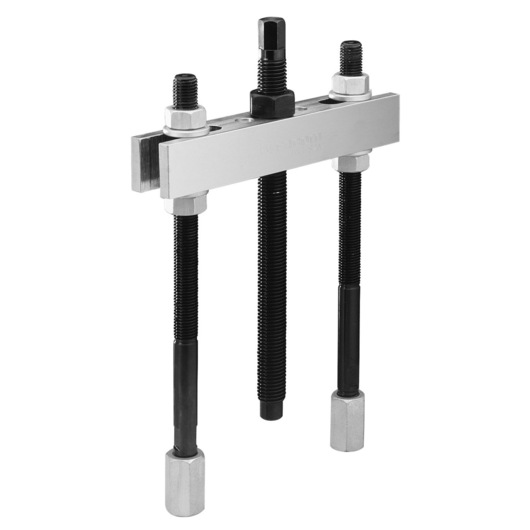

U.53S4A
Beams compatible with jacks, 170 - 400 mm
U.53S4A
Beams compatible with jacks, 170 - 400 mm
- These 2 non tapped beams with mechanical specifications exceeding U.53K (dimensions, steel and thermal treatment) are designed to withstand the high loads generated by the power of jacks used.
- Capacity 170-400 mm
- Capacity 30 t
Additional Features
- M33
Specifications
|
Stud Driver Diameter Type
|
Single Diameter
|
|
Self Gripping
|
No
|
|
Max. Clip Capacity [Metric]
|
170,400 mm
|
|
Puller Profile
|
U-Bolt
|
|
Product Width [Metric]
|
60 mm
|
|
CE Mark
|
Yes
|
|
Hex Size [Metric]
|
420 mm
|
|
Width Capacity [Metric]
|
60 mm
|
|
Product Weight [Metric]
|
15.5 Kg
|
|
Metric Ton (T)
|
30
|
|
Reversible
|
No
|
|
Type Of Puller
|
Beam Pullers
|
|
Special Grip
|
No
|
|
Number of Pieces
|
1
|
|
Is it a Set
|
No
|
|
Product Length [Metric]
|
450 mm
|
|
Tapping
|
M33
|
